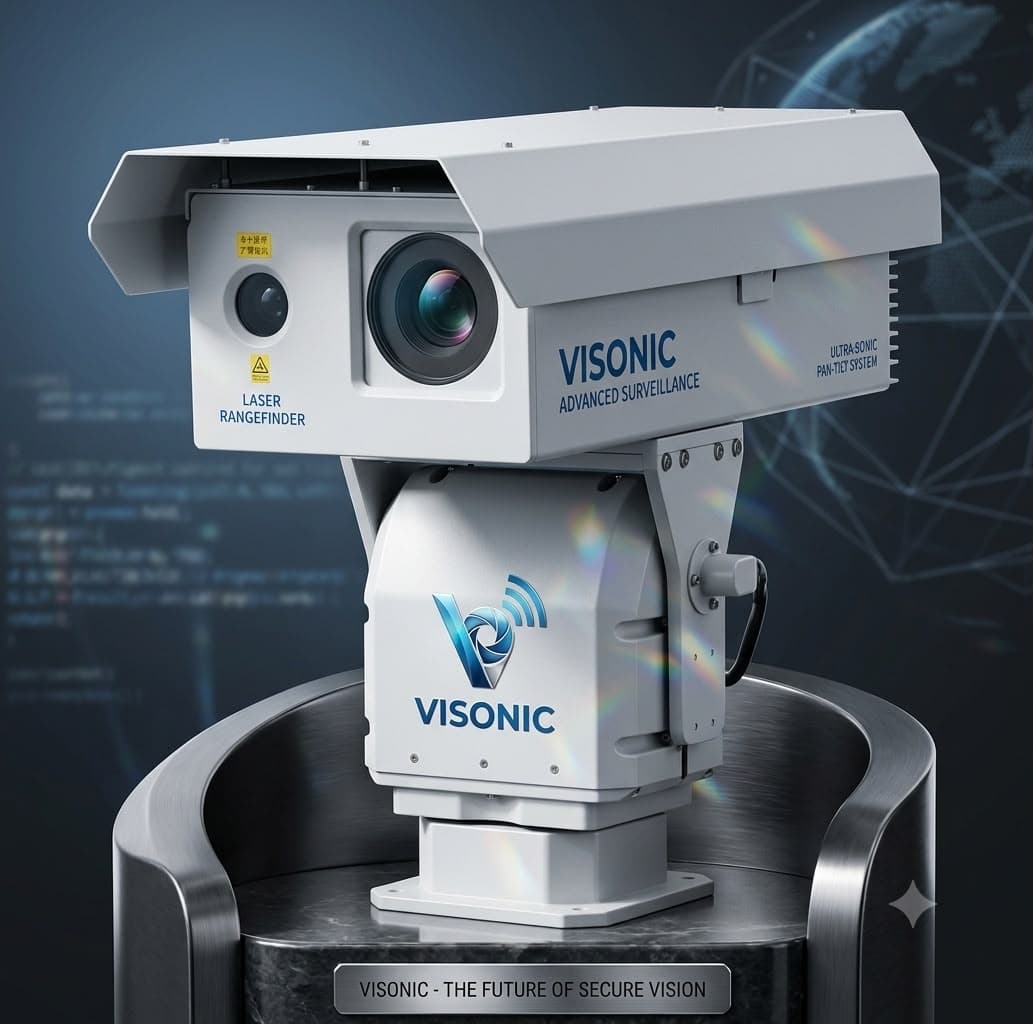

2 KM Long Range Laser Camera
$5600.00
Visonic TC2KM264ML
Product Features
Adopts a synchronous zoom laser IR illuminator system to provide long-distance illumination and monitoring at 0 Lux.
Day/night low-illumination color-to-black camera for 24-hour monitoring.
MCIC light homogenization technology eliminates speckle and Crape ring phenomena while maintaining high marginal definition.
Supports fog penetration, backlight compensation, and multi-stage WDR.
Supports telephoto limiting-velocity and 3D locate functions.
External MMA micro-adjusting mechanism allows laser alignment adjustment without removing the cover.
Professional smart housing design: lightweight, strong, high-temperature resistant, anti-corrosion, waterproof, and acid-rain resistant.
Technical Specifications
``` ```
Category | Specification | Details |
|---|---|---|
Monitoring Distance | Night Vision | 1000 m |
Day Vision | 2000 m | |
Imaging Lens | Focal Length | 15–300 mm |
FOV | 0.9°–18.2° | |
Camera | Sensor Type | 1/3" surface infrared-enhanced CCD |
Pixel | 752 × 582 | |
Resolution | Color: 600 TV lines; Black & White: 650 TV lines | |
Minimum Illumination | Color: 0.02 Lux; Black & White: 0.0009 Lux | |
Laser IR Illuminator | Illumination Lens | 60× zoom laser telephoto lens |
Power | 6 W | |
Wavelength | 810 nm | |
Illumination Angle | 0.5°–30° continuous adjustment | |
Light Homogenization | MCIC light homogenization technology | |
Shield | Material | Precision-cast aluminum alloy |
Window Glass | 4 mm Microlite super-white optical glass | |
Pan-Tilt | Load | 20 kg (top-load) |
Angle | Horizontal: 360° continuous rotation; Vertical: -60° to +20° | |
Speed | Pan: 0.1°–9°/s; Tilt: 0.1°–4°/s | |
Presets | 255 presets; supports lens zoom and focus preset memory | |
Auto Cruising | 8 cruising paths, with up to 10 presets per path | |
Anti-Thunder | 2000 V | |
Interface | Power Supply Interface | AC 24 V |
Other Interfaces | RS485, BNC video output | |
Environmental Indicators | Working Temperature | -25°C to +55°C |
Storage Temperature | -40°C to +65°C | |
International Protection | IP66 | |
Power | Power Supply | AC 24 V ±10%; supplied with AC 220 V to AC 24 V / 5 A waterproof power supply |
Power Consumption | ≤80 W | |
Physical Features | Weight | 25.5 kg |
Installation | Outdoor base installation | |
