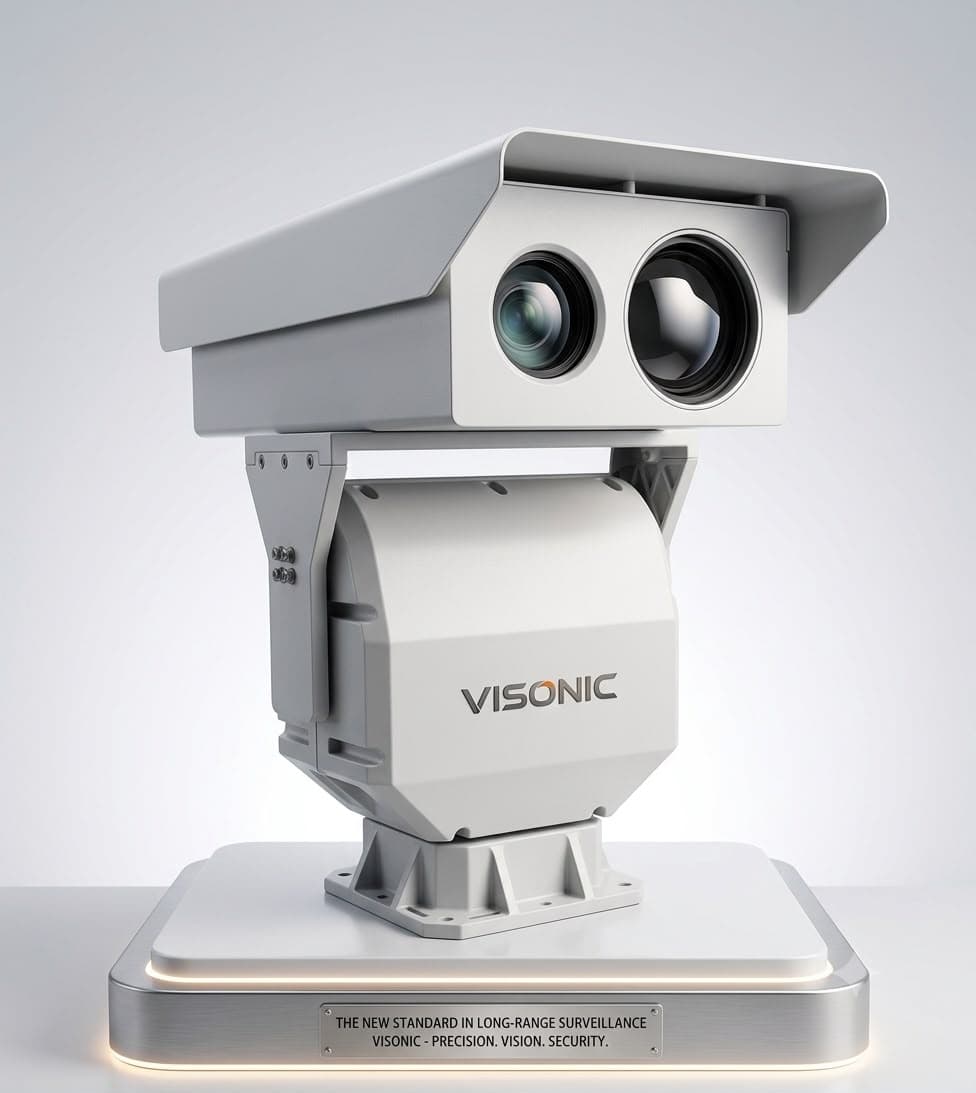

3 KM Long Range Thermal Camera
$14999.00
Brand : Visonic
Model : TC3KM264M
Product Description
• Double-pitch worm gear transmission structure, electronic anti-shake and mechanical anti-loosening design.
• Self-locking after power failure, strong wind resistance and high stability.
• Support a variety of lens preset function, zoom adaptive, the rotation speed can be automatically adjusted
according to the lens zoom and multiple.
• The worm gear is designed with large transmission, and the horizontal speed can reach 15°/s.
• High repeat positioning accuracy, up to ± 0.1°.
• It has visible light fog penetration and camera electronic fog penetration functions, daytime optical filtering and
DSP image processing to enhance image details in mist, water vapor, and dust environments.
• Built-in image enhancement and intelligent image analysis functions.
• Synchronous zoom laser lighting system, with long lighting distance and large range, can realize monitoring in 0Lux
all-black environment.
• Integrate mixed mode homogenization technology, no speckle dark ring phenomenon, high edge definition.
• With electric coaxial adjustment mechanism.
Technical Information |
|---|
Sensor | CMOS |
Horizontal Resolution | 4MP |
Certification | CE, RoHS |
Effective Distance | ≧30m |
Remote Control | Optional |
Origin | Canada |
Type | Thermal Imaging IP Camera |
HDMI Format | 1080P |
Kind | Autofocus Lens |
Feature | Waterproof / Weatherproof, High Definition, Auto BLC |
Sensor Size | 1/1.8'' |
Transport Package | Carton |
Specifications | |||
Part Number | TC3KM264M | TC3KM264MK | |
Camera
| Image Sensor | 1/1.8" Progressive Scan CMOS | |
Video Output | 50Hz: 25fps (2688*1520, 1920×1080, 1280×960, 1280×720); | ||
Lens
| Focal Length | 10-860mm, 86X Optical Zoom | 10.5~945mm, 90X Optical Zoom |
Aperture Range | F2.1-F11.2 | ||
Horizontal Field of View | 38.4-0.46° (wide-tele) | ||
Minimum Working Distance | 1m-10m (wide-tele) | ||
Laser
| Distance | 3000m | |
Wavelength | 808nm | ||
Storage Function | Storage Function | Support micro SD / SDHC / SDXC card (256g) offline local storage, NAS (NFS, SMB / CIFS support) | |
Network
| Protocols | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,RTP,RTSP,RTCP,NTP,SMTP,SNMP,IPv6 | |
Interface Protocol | ONVIF(PROFILE S,PROFILE G),GB28181-2016 | ||
AI Algorithm | AI Computing Power | 1T | |
PTZ
| Rotation range | Horizontal: 360° continuous rotation; Vertical: +45°~ -45° | |
spinning speed | Horizontal: 0.01~15°/s; Vertical: 0.01 ~ 7°/s | ||
Preset position accuracy | ±0.1° | ||
Number of preset positions Power Supply Power Consuption Ingress Protection Weight | 200 (customizable) DC48V+- 10% 250W IP67 43Kg | ||
