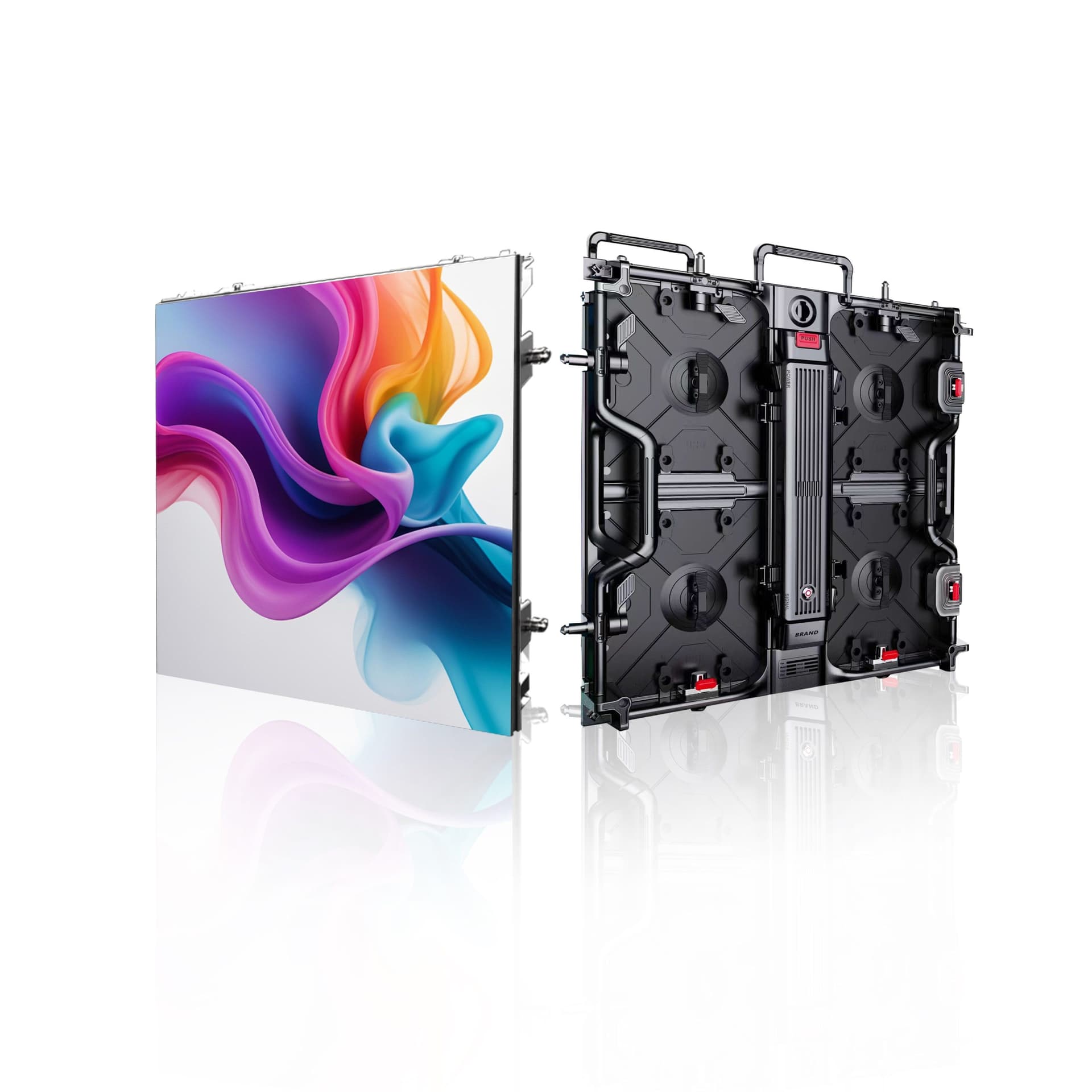

Indoor LED Screen
$145.00
Product Overview
Brand: Visonic
Model: 3.91mm Indoor
Technical Specifications
- Pixel Pitch: 3.91mm
- LED Encapsulation: SMD2121 (GOB)
- Environment: Indoor (Rental)
- Ingress Protection: IP52
- LED: Tempered Gorilla Glass
- Resolution: 160,000 dots/sqm
- Module Resolution: 64 × 64 dots
- Cabinet Resolution: 128 × 256 dots
- Pixel Density: 65,536 dots/m²
- Module Pixels: 4,096 dots
- Module Size: 160mm × 320mm
- Cabinet Size: 480mm × 640mm × 65mm
- View Distance: 2.5m
- View Angle: H160° / V140°
Performance
- Refresh Rate: 3840–7680Hz
- Scan Mode: 1/64 Constant Current Drive
- Maximum Power Consumption: 480W/m²
- Average Power Consumption: 144W/m²
- Brightness: 600–800 cd/m² (Manual/Automatic Control)
- Contrast Ratio: 5000:1
- Gray Scale: 16-bit (4096 Gray Levels, 687 Million Colors)
Electrical Specifications
- Working Voltage: 200–240VAC
- Frame Frequency: 50/60Hz
- Color Temperature: 2000K–9500K Adjustable
Reliability & Environment
- MTBF: 10,000 Hours
- Life Span: 100,000 Hours
- Working Temperature: -20°C to 60°C
- Working Humidity: 10%RH–90%RH
- Ingress Protection (Front/Rear): IP31
Media Support
- Supported Files: Text, Animation, Picture, Video, and more
- Control Distance:
- CAT5 Cable: Up to 100m
- Single Fiber: Up to 10km
Control System
- Software Brand: Novastar
- Sending Box & Video Processor: CMS260 / TB60
- Receiving Card: MRV412
- Input: HDMI / DVI
Included Spare Parts
- LED Module
- Power Supply
- Data Receiving Card
- IC
- LED Components
